SIRIO PERFORMER P5000PL MOBILE CB ANTENNA INCLUDING SIRIO MAG-MOUNT
PERFORMER P5000PL COMPLETE WITH MAG-145PL MAG-MOUNT

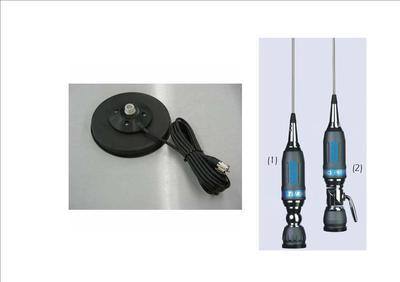

Antenna number 2 in picture.
The Sirio Performer P5000 PL is designed for high power applications. I has a detachable whip so it can be quickly removed if required.
Features: - CB & 10m Mobile antennas - Very High power handling capability - Tunable from 27 to 28.5 MHz - Protection from static discharges DC-Ground - 17/7 PH tapered stainless steel whip - Whip detachable for car-wash - Suitable for magnetic mount installation
Electrical Data - Type: base loaded - Frequency range: 27 ... 28.5 MHz - Impedance: 50 Ω - Polarization: linear vertical - SWR @ res. freq.: ≤ 1.2 - Bandwidth @ SWR ≤ 2: ≥ 2000 KHz (200 channel) - Max. power: 1500 Watts (CW) continuous 5000 Watts (CW) short time
Mechanical Data - Mounting: UHF-male (PL 259) - Cable lenght/Type: PL version: not supplied Standard: for power up to 600 Watts max: 4m RG58 Hi power: for power up to 2000 Watts max: 4m RG303 teflon - Height (approx.): 1965 mm - Weight (approx.): 650 gr
