SIRIO TURBO 3000 PL BLUE LINE CB MOBILE ANTENNA
  • SIRIO TURBO 3000 PL BLUE LINE CB MOBILE ANTENNA
  • SIRIO TURBO 3000 PL BLUE LINE CB MOBILE ANTENNA

  • SIRIO TURBO 3000 PL BLUE LINE CB MOBILE ANTENNA

  • £38.95

:  at  £38.95  each

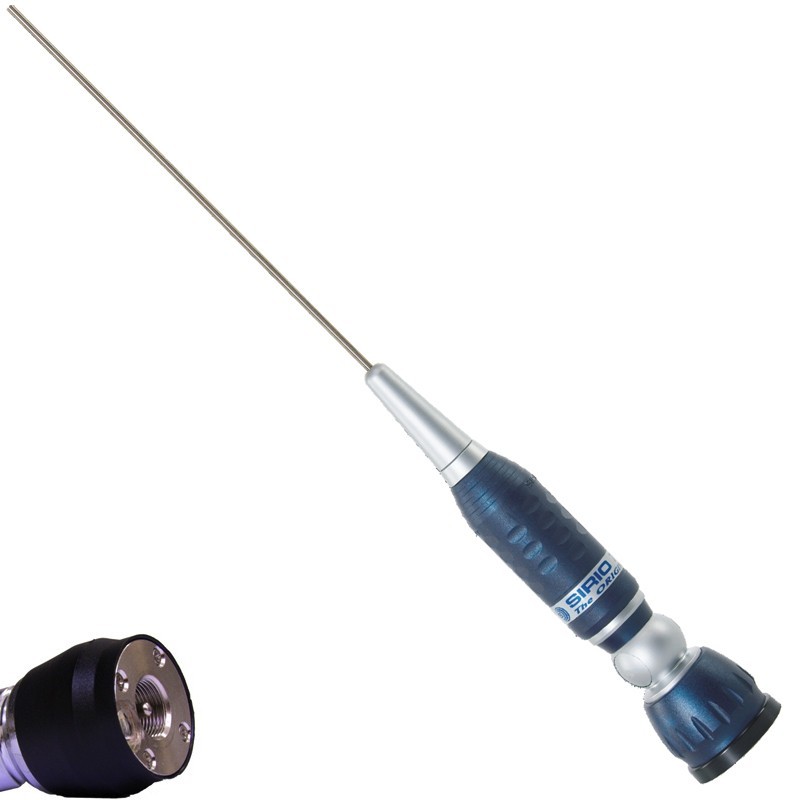

Antenna number 1 in picture.

Features:

- CB & 10m Mobile antennas
- Tunable from 27 to 28.5 MHz
- Protection from static discharges DC-Ground
- TURBO 800 S: 17/7 PH stainless steel spring whip
 TURBO 1000, 2000, 3000: 17/7 PH tapered stainless steel whip
- 90° inclination and adjustable whip, detachable for car-wash
- Suitable for magnetic mount
- Glazed chromed surface, blue plastic parts

Part Numbers:
P/N 2201905.40 TURBO 800 S Blue Line
P/N 2201905.41 TURBO 800 S PL Blue Line
P/N 2202005.40 TURBO 1000 Blue Line
P/N 2202005.41 TURBO 1000 PL Blue Line
P/N 2202105.40 TURBO 2000 Blue Line
P/N 2202105.41 TURBO 2000 PL Blue Line
P/N 2202405.40 TURBO 3000 Blue Line
P/N 2202405.41 TURBO 3000 PL Blue Line

Electrical Data
- Type: base loaded
- Frequency range: 27...28.5 MHz
- Impedance: 50 Ω
- Polarization: linear vertical
- Bandwidth @ SWR ≤ 2:
 TURBO 800 S, TURBO 800 S PL: ≥ 430 KHz (40 channel)
 TURBO 1000, TURBO 1000 PL: ≥ 660 KHz (60 channel)
 TURBO 2000, TURBO 2000 PL: ≥ 1100 KHz (100 channel)
 TURBO 3000, TURBO 3000 PL: ≥ 1770 KHz (140 channel)
- SWR @ res. freq.: ≤ 1.2
- Max. power:
 200 Watts (CW) continuous
 1000 Watts (CW) short time
- Mounting:
 TURBO series: hole Ø 12.5 mm
 TURBO PL series: UHF-male (PL 259)
- Cable lenght / Type:
 TURBO series: 4 m / RG 58
 TURBO PL series: not supplied

Mechanical Data
- Materials: Brass, Copper, Nylon, Stainless Steel
- Height (approx.):
 TURBO 800 S, TURBO 800 S PL: 840 mm
 TURBO 1000, TURBO 1000 PL: 1150 mm
 TURBO 2000, TURBO 2000 PL: 1450 mm
 TURBO 3000, TURBO 3000 PL: 1710 mm
- Weight (approx.):
 TURBO 800 S, 3000: 580 gr
 TURBO 1000, 2000: 530 gr
