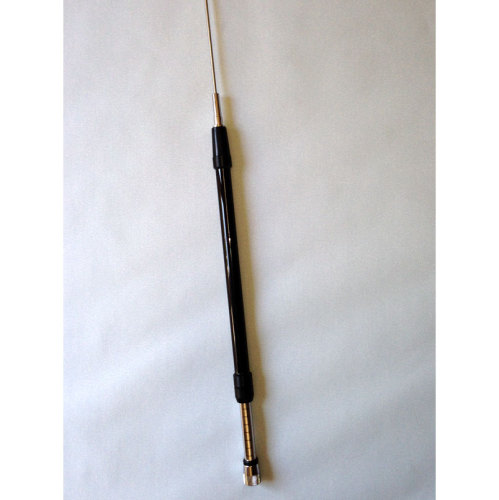

MA-3800 MOBILE MULTI-BAND ADJUSTABLE ANTENNA 7-430 MHz

Portable antenna ideal for use in vehicle or mobile operations adjustable from 7 to 430 MHz by vertical movement of the loading coil at the base. It can be installed either on magnetic base (the triple base is ideal ) or directly on vehicle bracket. Also suitable for  field day operations.

Specifications Main:

Frequency: 7-430 MHz

Max Power: 130 W (SSB)

Impedance: 50 Ohm

Length: 0.50 to 1.78 m.

Connector: PL-259

Weight: 0.4 Kg

Type: 1/4 short wave (HF Band), 1/4 wave 50/144/430, 5/8 wave 144/430.

On 144 /430 MHz bands it can operate as either a 1/4 or 5/8 wave antenna depending on configeration.

A well constructed antenna with quick and simple band adjustment.
