RH770 CENTRE LOAD TELESCOPIC ANTENNA DUAL BAND 144/430MHz
  • RH770 CENTRE LOAD TELESCOPIC ANTENNA DUAL BAND 144/430MHz
  • RH770 CENTRE LOAD TELESCOPIC ANTENNA DUAL BAND 144/430MHz

  • RH770 CENTRE LOAD TELESCOPIC ANTENNA DUAL BAND 144/430MHz

  • £17.95

:  at  £17.95  each

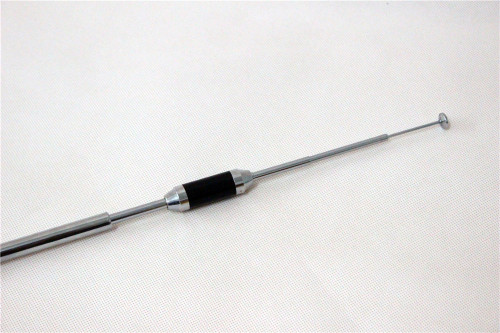

Extremely high quality 10 section telescopic centre loaded antenna designed to transmit on 144/430MHz, and receive wide band up to 1300MHz.

The long length allows for very good signal gain figure of up to 5dB.The long length allows for very good signal gain figure of up to 5dB.



Technical Specifications:

Type of Antenna

 ¼ wave reduced

Frequency Range

VHF 144-150MHz (Tx)

UHF 430-450MHz (Tx)

0.5Mhz - 1300MHz (Rx)

Length

23cm retracted / 91cm fully extended

Weight

104g

Gain

3.0dB / 5.5dB

Connector

BNC
