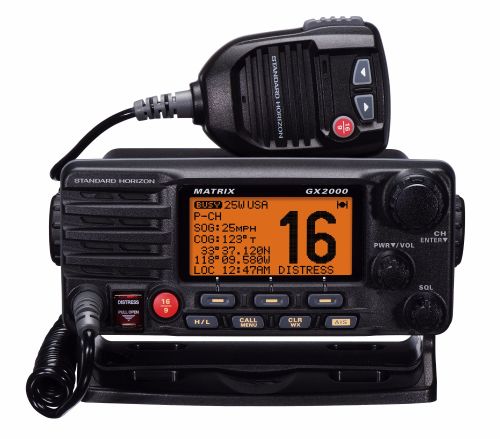

GX2000E MatrixDSC Class D transceiver
deal Marine VHF for mariners who already have an AIS onboard.
25W Marine fixed mount VHF with AIS receiver or transponder input, Waypoint navigation and 30W loud hailer. RAM3 second station compatible.
• AIS (Automatic Identification System) receiver or transponder must be connected to perform AIS functions
• AIS target display*: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG
• Contact AIS Ship with DSC*
• CPA (Closest Point of Approach) Alarm*
• 80dB Commercial grade receiver
• Class D DSC (Digital Selective Calling) with Individual, All ship, Position Report, Request and Distress
• Independent Channel 70 receiver built-in for continuous DSC watch
• Local/Distance attenuator
• Enter, Save and Navigate to waypoints with Compass page**
• Navigate to a DSC Distress Call**
• Submersible JIS-7 / IPX7 (1m for 30 minutes)
• ClearVoice noise canceling speaker microphone with channel selection and 16/9 key
• Oversized rotary channel knob with push to enter, backlit display and keys
• 30 Watt PA/Loud Hailer with preprogrammed fog signals
• Capable of connecting an optional RAM3 second station remote microphone
• Intercom between radio and RAM3
• DSC position request and report functions when connected to compatible GPS chart plotter
• Voice Scrambler (optional)
• Versatile user-programmable scanning, priority scan and Dual Watch
• One-button access to Channel 16 and 9
• User programmable soft keys
• Navigation (LAT/LON, SOG and COG) information shown on display when connected to GPS
• 38400 AIS VDM sentence output to compatible GPS chart plotter
• 3 Year Waterproof Warranty
*when connected to an optional AIS receiver or transponder
**when connected to an optional GPS
**** Available in White or Black ****
Do you have an AIS receiver or transponder on your vessel? The GX2000 MATRIX is the perfect radio for you! When the MATRIX is connected to a AIS receiver or transponder (with VDM AIS sentence output at 38400 baud) the display will show AIS targets simply by pressing the dedicated AIS key. The MATRIX will display AIS MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG and will allow you to contact an AIS Ship directly using DSC, show your vessels position in relation to AIS targets and alert you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm.Navigate to Waypoints
The MATRIX is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint when connected to an external GPS.Digital Selective Calling (DSC)
The MATRIX is Class D class DSC VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels.DSC Position Polling and NMEA in/output
The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, All ship - Urgency and Safety, Group, Position report and position request calls.
Easily share position information with other DSC equipped vessels using the position request and position reporting functions. With the push of a few buttons you can request the position of another vessel, or simply send your position information to the vessel you select.ClearVoice noise reduction technology speaker microphone
The GPS Position of a received DSC Distress or Position Request call can be shown on a compatible GPS Chart plotter simply by connecting 2 NMEA wires.
The MATRIX features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear along with dedicated 16/9 key and channel selection. In addition the microphone includes a speaker for crystal clear reception of transmissions.Commercial grade 80dB receiver
Advanced receiver technology rejects the reception of unwanted signals from pagers and other unwanted VHF frequencies. In addition the MATRIX has an receiver attenuator to futher reduce noise in busy harbours and marinas.30W PA and Fog signalling
The MATRIX includes a 30W Loud Hailer with Fog signals; Bells and Whistles. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes.Big, bold display
There is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.Programmable Channel Names
The MATRIX is supplied from the factory preloaded with description of the use of Marine channels (16-Distress, 22A-USCG, 71-Pleasure...). The channel names may be customized by the user to easily understand the use of each channel.GPS repeating
By connecting a GPS to the MATRIX; Position, date, and time are also displayed when interfaced with a GPS receiver.Optional RAM3 capable
Need to remotely control the VHF from your cockpit of fly bridge? The MATRIX is RAM3 remote mic capable to control all VHF, DSC and AIS* functions at a second station.Programmable Scan, Priority Scan and Dual Watch
AIS receiver or transponder connection required.
Scanning is not an issue with the MATRIX. The radio can be setup to scan any number of channels with or without a priority channel or simply can be setup to scan between a priority channel and on other channel (dual watch).ATIS Mode
User-Programmable ATIS mode for use on Inland European Waterways under RAINWAT agreement (Requires ATIS number from appropriate regulatory body).It’s built better so backed better
Because the MATRIX is built better, it’s backed better. If your Standard Horizon MATRIX ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period!
Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice.
Specifications GX2000E/Matrix General Channels All USA, International and Canadian Input Voltage 12.0VDC +30%/-10% (10.8 to 15.6 VDC) Current Drain Standby 0.45A Receiver (Max AF Output) 0.8A Transmit 5.0A (Hi), 1.0A (Lo) Distress Call Log 26 Individual Call Log 64 Individual Call Directory 80 Group Call Directory 32 Waypoing Directory 100 Display Type 70 x 34mm, Full Dot Matrix (132 x 64 pixels) Dimensions (W x H x D, mm) 180 x 80 x 160 Flush Mount Dimensions (W x H x D, mm) 161 x 65 x 150 Weight (approx, kg) 1.45 TRANSMITTER Frequency Range 156.025 to 157.425 MHz RF Output Power 25W (Hi), 1W (Lo) Conducted Spurious Emissions Less than -80dBc (Hi), -66dBc (Lo) Audio Response within +1/-3dB of a 6db Octave pre-emphasis characteristic at 300 to 3000Hz Audio Distortion less than 5% Modulation 16K0G3E (for Voice), 16K0G2B (for DSC) Frequency Stability ±0.0003% (-15ºC to +55ºC) FM Hum and Noise 50dB RECEIVER (For Voice and DSC) Frequency Range 156.050 to 162.000MHz Sensitivity 20dB Quieting 0.35µV 12dB SINAD 0.30µV Squelch Sensitivity (Threshold) 0.13µV Modulation Acceptance Bandwidth ±7.5kHz Selectivity (Typical) Spurious and Image Rejection 75dB for Voice (75dB for DSC) Intermodulation and Rejection 75dB for Voice (75dB for DSC) Audio Output 4.5W (@ 4Ω external speaker output) Audio Response within +1/-3dB of a 6dB/Octave de-emphasis characteristic at 300 to 3000Hz Frequency Stability ±0.0003% (-15ºC to +55ºC) Channel Spacing 25kHz DSC Format ITU-R M.493-12 Attenuator (Local) Approx 10dB NMEA Input/Output NMEA 0183 GPS Input (4800 baud) GGA, GLL, GNS, RMC NMEA 0183 DSC Output (4800 baud) DSC and DSE NMEA 0183 AIS Output (38400 baud) VDM
