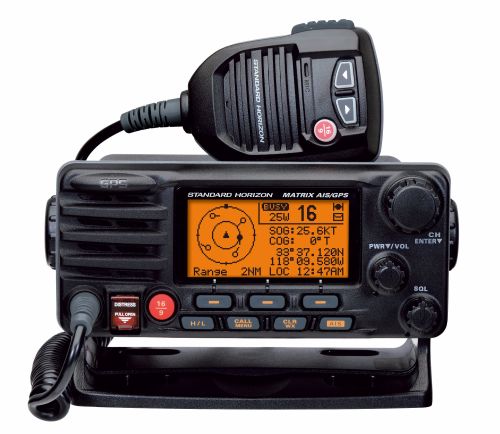

GX2200E Matrix AIS/GPS DSC Class D transceiver with dual channel AIS Receiver built in

The GX2200 MATRIX AIS/GPS is the perfect radio for you! When the MATRIX AIS/GPS is connected to a Marine VHF aerial the display will show AIS targets simply by pressing the dedicated AIS key. The MATRIX AIS/GPS will display AIS MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG and will allow you to contact an AIS Ship directly using DSC, show your vessels position in relation to AIS targets and alert you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm. AIS SART targets are also displayed with MMSI number and BRG, DST information.

The MATRIX AIS/GPS is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance).

The MATRIX AIS/GPS is Class D class DSC VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels.

The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, All ship - Urgency and Safety, Group, Position report and position request calls.

Easily share position information with other DSC equipped vessels using the position request and position reporting functions. With the push of a few buttons you can request the position of another vessel, or simply send your position information to the vessel you select.

The GPS Position of a received DSC Distress or Position Request call can be shown on a compatible GPS Chart plotter simply by connecting 2 NMEA wires.

The MATRIX AIS/GPS features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear along with dedicated 16/9 key and channel selection. In addition the microphone includes a speaker for crystal clear reception of transmissions.

Advanced receiver technology rejects the reception of unwanted signals from pagers and other unwanted VHF frequencies. In addition the MATRIX has an receiver attenuator to futher reduce noise in busy harbours and marinas.

The MATRIX AIS/GPS includes a 30W Loud Hailer with Fog signals; Bells and Whistles. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes.

There is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.

The MATRIX is supplied from the factory preloaded with description of the use of Marine channels (16-Distress, 22A-USCG, 71-Pleasure...). The channel names may be customized by the user to easily understand the use of each channel.

The builtin GPS data on the MATRIX AIS/GPS can be exported from the Radio to another compatible NMEA 0183 device., eg Position, date etc.

Need to remotely control the VHF from your cockpit of fly bridge? The MATRIX  AIS/GPS is RAM3 remote mic capable to control all VHF, DSC and AIS* functions at a second station.

Programmable Scan, Priority Scan and Dual Watch

Scanning is not an issue with the MATRIX AIS/GPS. The radio can be setup to scan any number of channels with or without a priority channel or simply can be setup to scan between a priority channel and on other channel (dual watch).

User-Programmable ATIS mode for use on Inland European Waterways under RAINWAT agreement (Requires ATIS number from appropriate regulatory body).

Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice.

Specifications	GX2200E/Matrix AIS/GPS
General
Channels	All USA, International and Canadian
Input Voltage	12.0VDC +30%/-10% (10.8 to 15.6 VDC)
Current Drain
Standby	0.45A
Receiver (Max AF Output)	0.8A
Transmit	5.0A (Hi), 1.0A (Lo)
Distress Call Log	26
Individual Call Log	64
Individual Call Directory	80
Group Call Directory	32
Waypoing Directory	100
Display Type	70 x 34mm, Full Dot Matrix (132 x 64 pixels)
Dimensions (W x H x D, mm)	180 x 80 x 160
Flush Mount Dimensions (W x H x D, mm)	161 x 65 x 150
Weight (approx, kg)	1.45
TRANSMITTER
Frequency Range	156.025 to 157.425 MHz
RF Output Power	25W (Hi), 1W (Lo)
Conducted Spurious Emissions	Less than -80dBc (Hi), -66dBc (Lo)
Audio Response	within +1/-3dB of a 6db Octave
	pre-emphasis characteristic at 300 to 3000Hz
Audio Distortion	less than 5%
Modulation	16K0G3E (for Voice), 16K0G2B (for DSC)
Frequency Stability	±0.0003% (-15ºC to +55ºC)
FM Hum and Noise	50dB
RECEIVER (For Voice and DSC)
Frequency Range	156.050 to 162.000MHz
Sensitivity
20dB Quieting	0.35µV
12dB SINAD	0.30µV
Squelch Sensitivity (Threshold)	0.13µV
Modulation Acceptance Bandwidth	±7.5kHz
Selectivity (Typical)
Spurious and Image Rejection	75dB for Voice (75dB for DSC)
Intermodulation and Rejection	75dB for Voice (75dB for DSC)
Audio Output	4.5W (@ 4Ω external speaker output)
Audio Response	within +1/-3dB of a 6dB/Octave
	de-emphasis characteristic at 300 to 3000Hz
Frequency Stability	±0.0003%  (-15ºC to +55ºC)
Channel Spacing	25kHz
DSC Format	ITU-R M.493-12
Attenuator (Local)	Approx 10dB
NMEA Input/Output
NMEA 0183 GPS Input (4800 baud)	GGA, GLL, GNS, RMC
NMEA 0183 DSC Output (4800 baud)	DSC and DSE
NMEA 0183 AIS Output (38400 baud)	VDM
