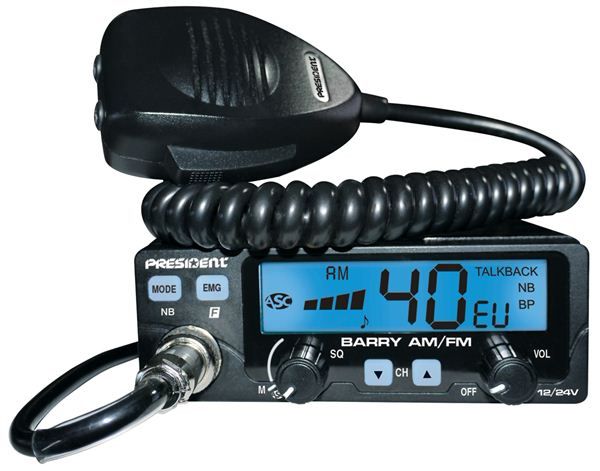

PRESIDENT BARRY AM/FM MOBILE CB RADIO 12/24V

PRESIDENT BARRY ASC 12/24V AM/FM CB MOBILE RADIO

President Barry mobile CB radio is a new addition to President's range. This dual voltage (12/24V) CB is a basic radio with a large clear display and operates on AM/FM bands.

Although this CB radio is compact and easy operational but yet packed full of special features such as Roger Beep, ANL Filter, PA, TOT, Manual Squelch and ASC etc.

It also has 7 colour LCD display selection and microphone with channel change function.

The box contains radio with power lead, microphone with Up/Down Buttons, mounting bracket and screws, mic clip and instructions manual.

FEATURES

* 40 channels AM / FM

* 12 / 24V

* Up/down channel selector

* Volume adjustment and ON/OFF

* Manual squelch and ASC

* Multi-functions LCD display

* S-meter

* Public Address

* ANL filter, NB

* F Function key

* Beep Function

* Roger Beep

* Mode switch AM / FM

* Preset channel programmable

* TOT (Time out timer)

* Front microphone plug

- External loudspeaker jack

TECHNICAL SPECIFICATIONS

General

* Number of channels: 40

* Modulation Modes: AM / FM

* Frequency Range: 26.965 MHz to 27.405 MHz

* Antenna Impedance: 50 ohms

* Power supply: 12 / 24V

* Dimensions: 125 (W) x 175 (D) x 45 (H)

* Weight: 0.9 kg

* Filter: ANL (Automatic Noise Limiter) built-in

Transmitter

* Frequency Allowance: +/- 200 Hz

* Carrier Power: 4 W AM / 4 W FM

* Transmission Interference: inferior to 4 nW (- 54 dBm)

* Audio Response: 300 Hz to 3 KHz

* Emitted Power in the adj. Channel: inferior a 20 μW

* Microphone Sensitivity: 7 mV

* Drain: 1.7 A at 13.2 V / 0.85 A at 26.4 V

* Modulated Signal Distortion: 2 %

Receiver

* Maxi. sensitivity at 20 dB sinad: 0.5 µV - 113 dBm AM / 0.35 µV - 116 dBm FM

* Frequency Response: 300 Hz to 3 kHz

* Adjacent Channel Selectivity: 60 dB

* Maximum Audio Power: 2.5 W

* Squelch Sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm

* Frequency Image Rejection Rate: 60 dB

* Intermediate Frequency Rej. Rate: 70 dB

* Drain: 180 ~ 500 mA (13.2 V) ;100 ~ 300 mA (26.4 V)
