CRT MICRON MOBILE DUAL BAND VHF / UHF TRANSCEIVER (Expandable)

Shop Home > AMATEUR AVIATION CB MARINE PMR RADIO > AMATEUR RADIO RECEIVERS AND TRANSCEIVERS > CRT RADIO

CRT MICRON MOBILE DUAL BAND VHF / UHF TRANSCEIVER
  • CRT MICRON MOBILE DUAL BAND VHF / UHF TRANSCEIVER
  • CRT MICRON MOBILE DUAL BAND VHF / UHF TRANSCEIVER

  • CRT MICRON MOBILE DUAL BAND VHF / UHF TRANSCEIVER (Expandable)

  • CRT's new compact fully featured dual band amateur radio
  • £109.95

:  at  £109.95  each

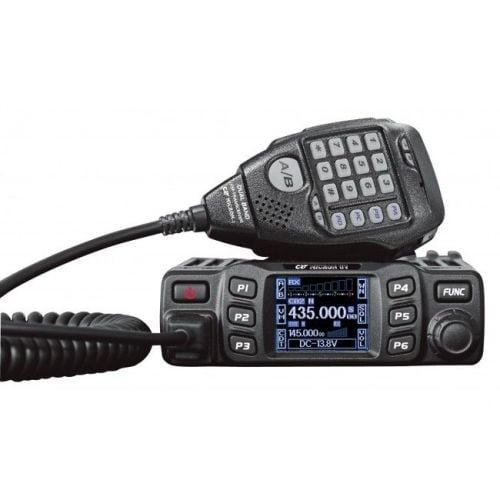

The CRT-Micron is a very compact dual band amateur radio with all the important features.
Particularly noteworthy is the colour TFT display and the very compact design. The CRT Micron UHF / VHF transceiver offers three switchable output powers (5/15/25 watts) in the VHF and UHF range.

technical data

Frequency range TX (transmitter)
  • 144-146 / 430-440 MHz (expandable)
Frequency range RX (receiver)
  • 144-146 / 430-440 MHz (expandable)
transmission power
  • VHF 5W / 15W / 25W
  • UHF 5W / 15W / 20W
modes
  • FM (TX / RX)
channel spacing
  • 2.5 / 5 / 6.25 / 10 / 12.5 / 20/25/30/50 kHz
memory channels
  • 200
Features & Functions
  • Channel spacing 12.5, 20 and 25 kHz switchable
  • Illuminated keys to enable easy operation even in the dark
  • easy-to-read TFT display (mehrfahrbig) with display frequency, received signal, output power, operating voltage, function indicators and more.
  • Operating mode FM (wide and narrow switchable)
  • simultaneous operation VHF / UHF, UHF / VHF, UHF / UHF or VHF / VHF possible
  • switchable ringer frequencies 1000 Hz / 1450 Hz / 1750 Hz / 2100 Hz
  • Switchable relay shelf +/- with selectable difference frequency
  • CTCSS and DCS decoder and encoder, with 52 CTCSS and 1024 DCS tones
  • DTMF sending function
  • Dual channel monitoring (Dual Watch)
  • Send time limit can be set / disabled
  • CTCSS and DCS search function
  • Search (Scan)
  • Reverse Function
  • Programmable via optional PC software / USB cable (not mandatory)
microphone connector
  • RJ Type
antenna connection
  • PL-259 socket
power supply
  • 13.8 V DC (max 10 - 12 A)
Dimensions in mm (WxHxD)
  • 122x35x165
Weight
  • about 480g


Included:

  • CRT MICRON transceiver
  • Handheld microphone with loudspeaker, band indicator and programmable function keys
  • DC cable
  • Instructions

    EAN .: 4250158711044
    Weight: 0.48 kg
