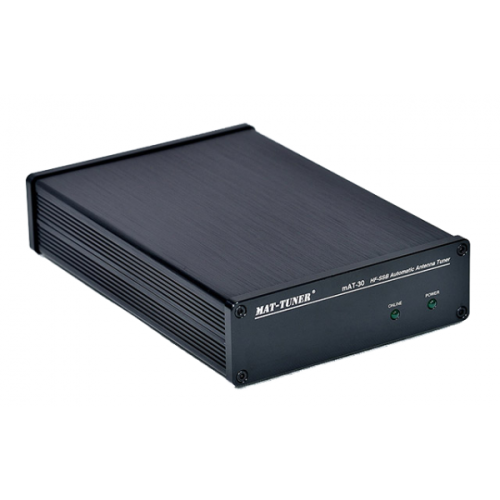

mAT-30 is engineered to integrate with Yaesu transceivers. The mAT-30 connects to one of CAT/LINEAR and LIN/TUN port on the back of the radio (description varies by model) and is operated by the front panel of the radio through this interface. Connection cable to radio supplied with tuner. 12VDC to power tuner sent via transceiver connection cable.
Provides automatic antenna tuning across the entire HF spectrum plus 6 meters at power levels up to 120 watts (100 watts max above 50 MHz). It will tune dipoles, verticals, yagis, long wire, or virtually any other coax-fed antenna. Impedance matching range of 5 to 1500 ohms far exceeds the capability of the transceiver internal automatic antenna tuner. 16,000 frequency memories for instant recall of previously used settings.
Yaesu transceivers that support the FC-30, FC-40, FC-50 Yaesu external tuners can be used with mAT-30.
